PEV European jaw crusherIt is mainly suitable for small mineral processing, building materials, construction, highway construction, silicate and chemical industries. Raw materials hardness do not exceed 250Mpa.

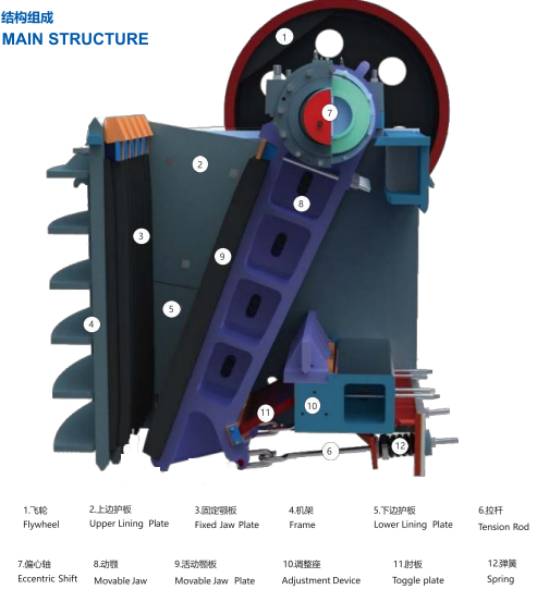

Structual:
1. This machine is mainly composed of components such as frame, moving jaw, eccentric shaft, jaw plate, lining plate, etc. The electric motor drives the eccentric shaft through a V-belt, causing the moving jaw to move along the adjusted trajectory, thereby crushing the material in the crushing chamber. After crushing, the material is discharged from the discharge port
2. The frame is a solid cast steel structure, with fixed toothed plates fastened with wedge bolts on the front wall of the frame. Edge guards are installed on the left and right walls of the crusher to prevent wear and tear on the side walls of the frame.
