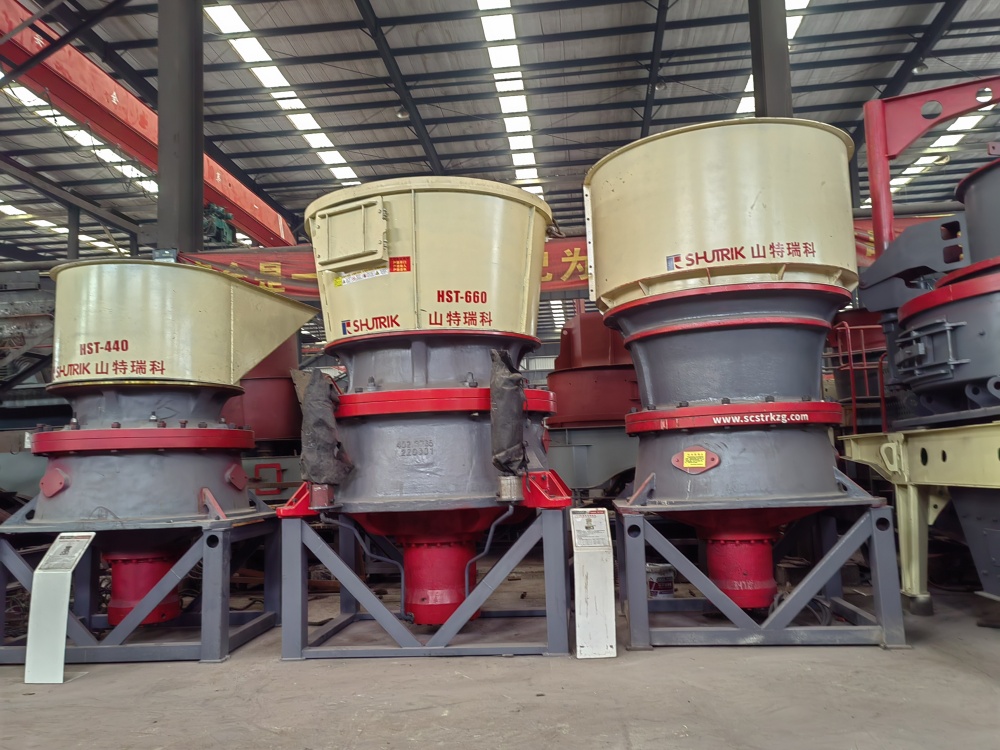

HST Cone Crusher

HPT single cylinder hydraulic cone crusher adopts PLC control system, which can realize dynamic gap adjustment and effectively reduce downtime. It has the advantages of simple operation, convenient maintenance and stable operation. It has a wide range of applications, especially crushing various hard metal ores, limestone, granite, basalt, river pebbles, construction waste, steel slag, cement raw materials, ceramic raw materials, etc. The same main machine can obtain a variety of cavity types by replacing the liner to meet various crushing requirements.

1.High performance & Great Compressive Capacity

HST  cone crushers incorporate eccentricity, cavity and equipment motion parameters together, greatly improv-
ing the final products quality,production capacity and efficiency.

2.Multiple Cavities for Various Process
Requirements

HST  cone crushers a variety of cavity type, a large crushing ratio and flexible change of eccentricity guarantee the most reasonable
solution for a wide variety of crushing processes .

3.Full Automatic Control

HST  cone crushers full automatic control system provides manual control, consistent discharging control, consistent power control and
other kinds of operating mode for users to choose.

4.Easy maintenance & Low operation
cost

HST  cone crushers all the maintenance work can be completed after removing the upper frame, which not only makes the device inspection and
maintenance easier but also reduces the maintenance cost.

Dust and other unwanted particles can be prevented from entering the cavity by ensuring that the cavity's inner pressure
is always higher than its external pressure. Thus, the damage of bearings and maintenance work is reduced. The life cycle of lubricatingoil and device are
extended.

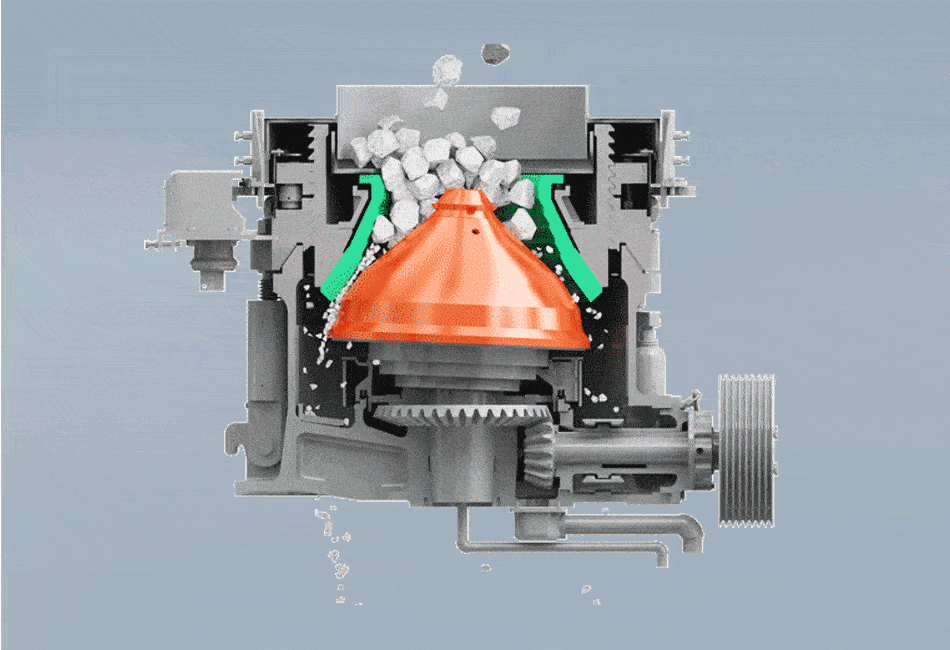

HST cone crusher is mainly composed of six parts: upper frame body, lower frame body, movable cone, eccentric sleeve, transmission part and hydraulic cylinder. The horizontal shaft driven by the motor makes eccentric sleeve rotating via the gear, then the eccentric sleeve drives the movable cone rotating to realize continuous stone extrusion.
