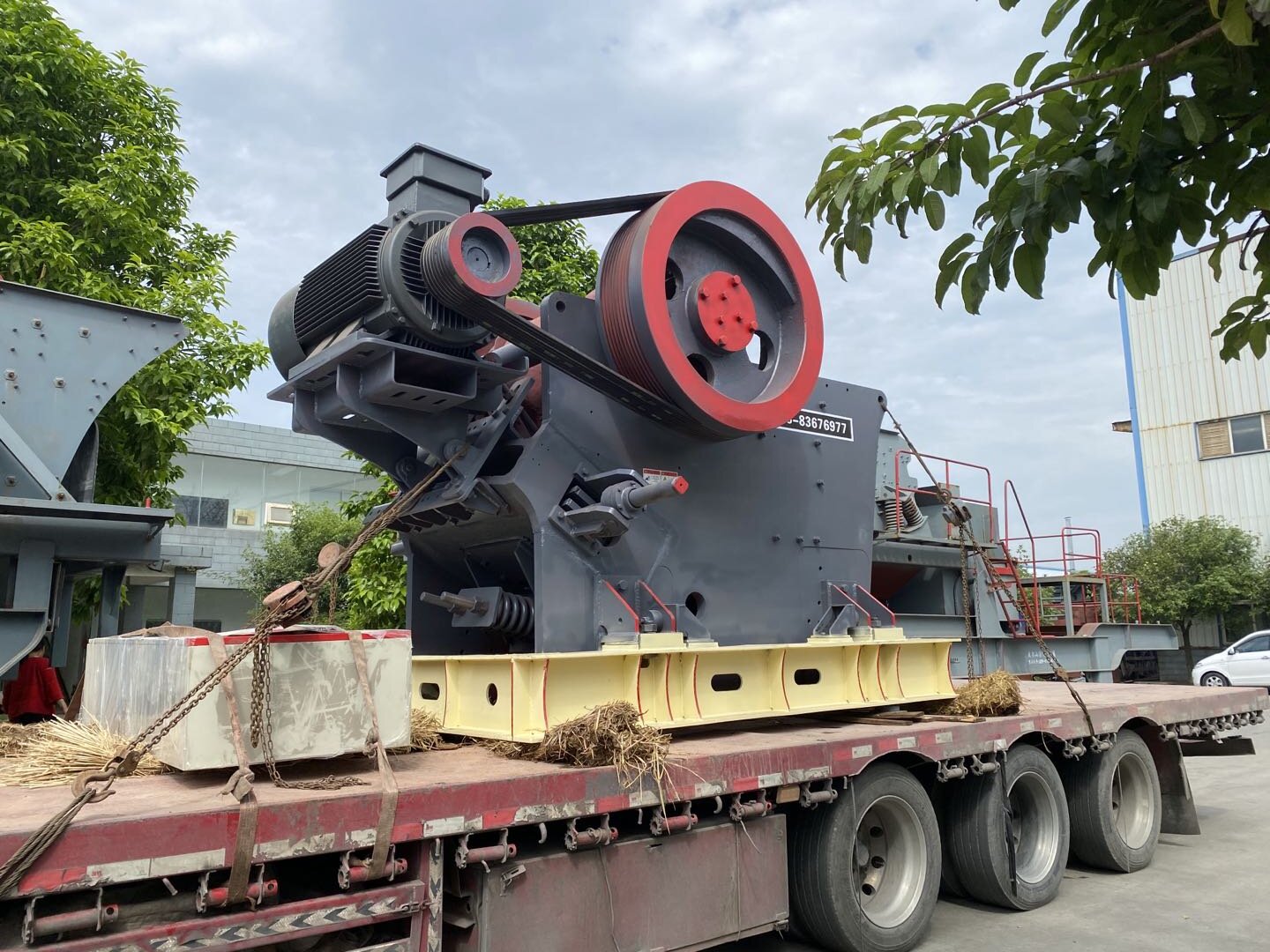

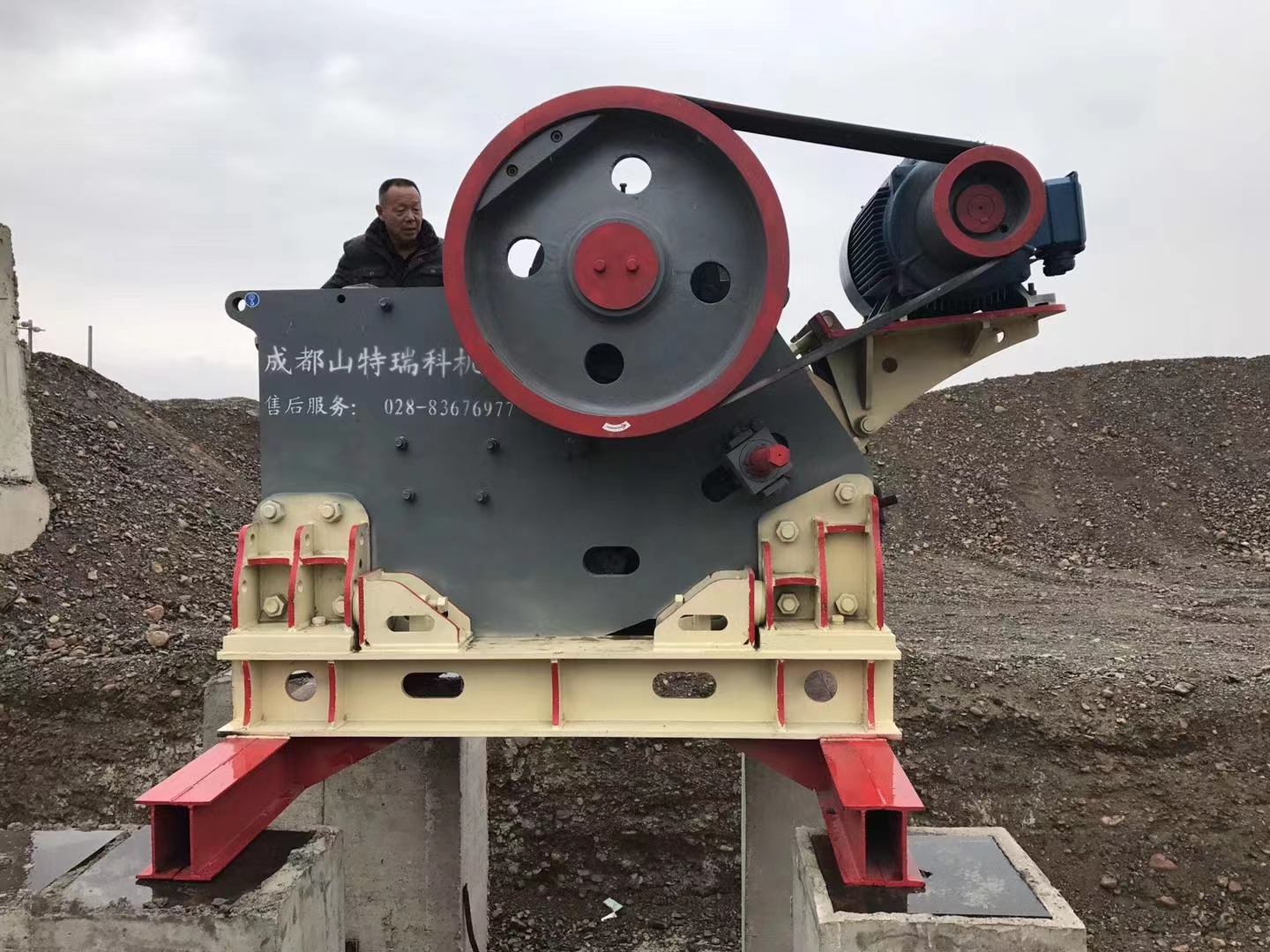

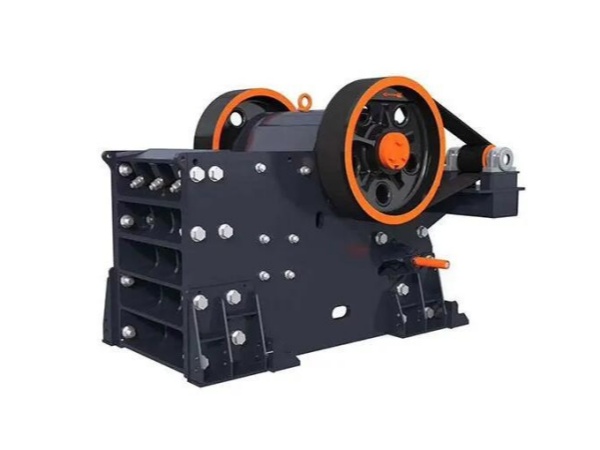

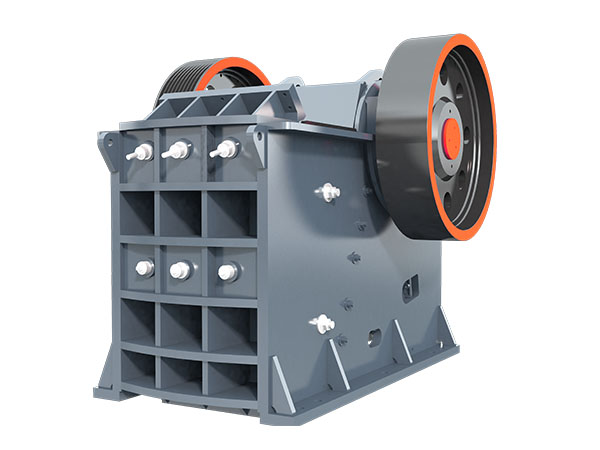

Jaw Crusher

PEV jaw crusher is an important equipment for coarse crushing in the crushing process. It is one of our core products and also a product with a long production history. Over the years, we have been focusing on the research and development and manufacturing of high-performance crushers. With the support of many customers on site, our products have undergone multiple iterations and upgrades, and introduced more advanced European technology, condensing the European version of the jaw crusher, which is currently at a relatively high level in the market. The European version of the jaw crusher adopts innovative modular, non-welded structural frame, high-quality alloy steel castings and rolling bearings, which greatly improves the fatigue resistance and operational reliability of the equipment, and fully guarantees the high yield, high efficiency and low cost of the crushing operation; a variety of flexible installation methods can meet different application options.

1. Efficient
crushing

Deep cavity crushing,
energy-saving optimized deep cavity crushing, no dead angle, greatly improves
feeding capacity and crushing efficiency, single machine energy saving 15%-30%,
system energy saving more than 2 times.

2. Advanced
technology, strong crushing force.

PEV jaw crusher adopts
advanced crushing technology and digital processing equipment, with precise
internal structure and enhanced crushing capacity.

3. Easy maintenance
and improved production efficiency.

PEV jaw crusher equipment
adopts grease centralized lubrication system, which is safe and reliable, easy
and fast to maintain, and reduces downtime and maintenance time.

4. Green and
environmentally friendly, low noise

PEV jaw crusher is equipped
with dust removal device to reduce dust generation, reduce pollution, and
strictly comply with national environmental protection standards.

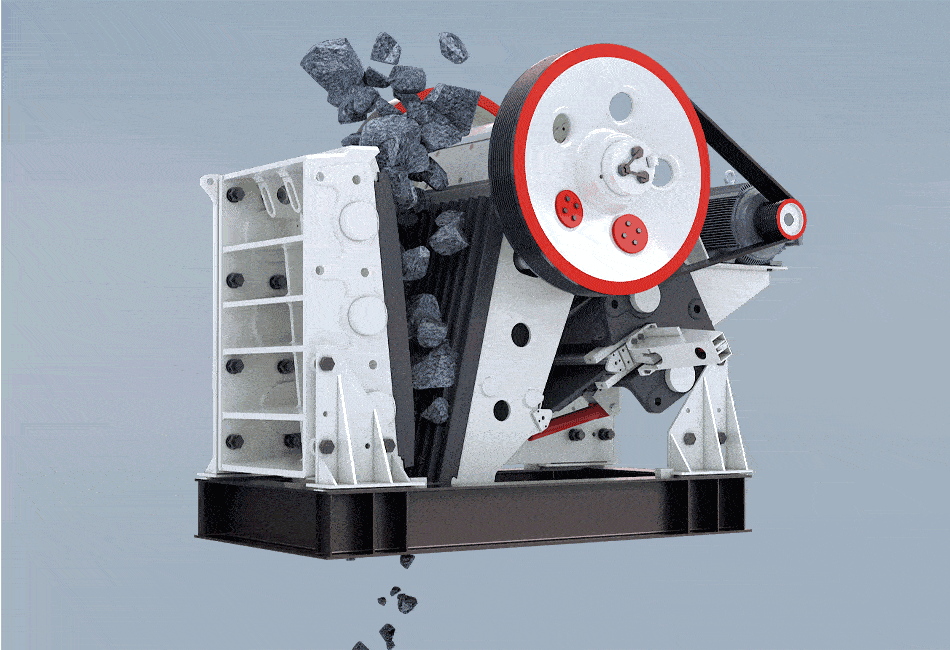

The working mode of the European version jaw crusher is the bending extrusion type. Its working principle is: the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.  The working mode of the European version jaw crusher is the bending extrusion type. Its working principle is: the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.
