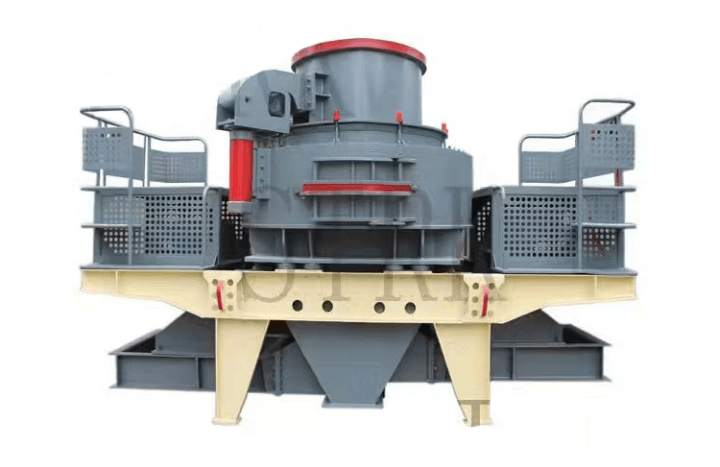

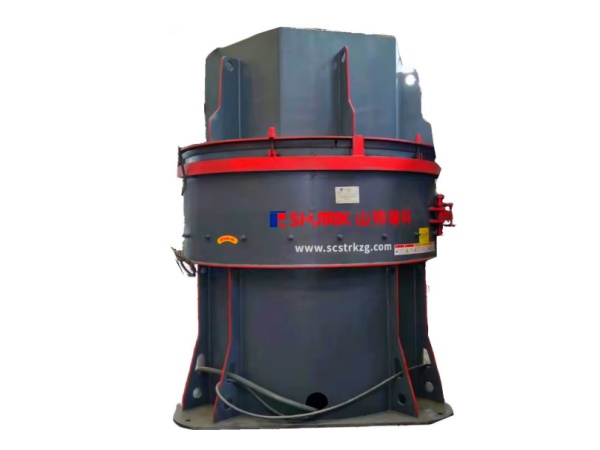

TV95 sand making machine

TV95 sand making machine is suitable for the crushing and shaping of soft or medium hard and extremely hard materials, widely used in all kinds of ore, cement, refractory, emery, bauxite, glass raw materials, mechanical construction sand and stone and all kinds of metallurgical slag. Especially for silicon carbide, emery, sintered bauxite, magnesia and other high hard, especially hard and corrosion resistant materials than other types of crusher yield effect is higher.

1. Simple structure

2, the product is a cube

3, high efficiency and energy saving, high crushing efficiency

4, low noise, less dust pollution

5, with fine crushing, coarse crushing function

6. Simple operation, convenient installation and maintenance

7. Medium hard and extra hard materials can be broken

After the material enters the sand making machine from the feed hopper, the material is divided into two parts by the dividing crane: one part enters the high-speed rotating impeller cavity, which is rapidly accelerated in the impeller cavity, and then the material is evenly thrown in the impeller in the form of an umbrella by the cloth cone, and the instant growth rate is 60-75 m/s and immediately thrown out from the runner. At this time, the first part of the material collected from around the upper part of the material hanger is impacted and broken, and then the flow is combined and impacted on the eddy current lining layer in the eddy current chamber. Part of the material is rebounded by the material lining layer and impacted diagonally upward to the top of the eddy current chamber, changing its movement direction again, deflecting downward and forming a continuoumaterial curtain. Such a piece of material is subjected to two or more impacts, friction and grinding and crushing in the vortex cavity, and the broken material is discharged from the lower discharge port. In the whole crushing process, the materials also have constant impact and friction with each other and the material lining board to crush; This process also makes the radius of the material loop movement minimum, so that the crushing efficiency is greatly improved, the powder yield is reduced, and the dust pollution is reduced due to the ingenious air flow self-circulation in the vortex chamber.
