5X Sand Making Machine

The 5X series sand maker serves three primary roles: crushing, shaping, and sand production. It's frequently employed in the concluding phase of the crushing and sand production process. The sand it generates boasts complete particles, excellent gradation, and consistent output. This machine is a highly efficient crusher, ideal for industrial construction. Its application spans across various sectors, such as mining, metallurgy, and construction materials.

1、The deep cavity rotor design of the 5X series sand making machine can increase the material flow rate by about 30%.

2、After the 5X series sand making machine guard plate is worn, it can be adjusted up and down. This change improves the material utilization rate and increases

the service life of the machine by more than 48%.

3、The hammer head of the 5X series sand making machine adopts a special design. Only the worn hammer head part needs to be replaced, which can reduce the cost by more than 30%.

4、The main wear-resistant materials of the 5X series sand making machine are strong and heat-resistant materials, which are used in key industries in the United States.

5、The 5X series sand making machine uses diamond impact blocks, which help prevent material wear and damage to the counterplate.

6、The launch port and smoother internal curve design of the 5X series sand making machine reduce flow resistance. This change greatly improves the material flow capacity of the machine.

7、The 5X series sand making machine uses a dual-purpose tray for bulk materials, which is easy to use and can quickly switch between two feeding methods.

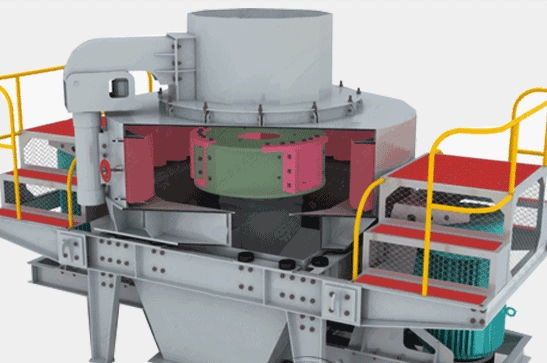

5X Series Sand Making Machine: Using the rock-on-rock principle, during the entire crushing process, the VSI uses a high-speed rotor to throw rocks against the anvil or hit each other in the crushing chamber. The impact force breaks the rock into smaller particles, which are then screened and classified to achieve the required sand size and quality. This process is continuous, with rocks constantly being fed into the crusher and crushed sand constantly being discharged, which ensures that only materials that meet the required particle size are discharged from the machine.
