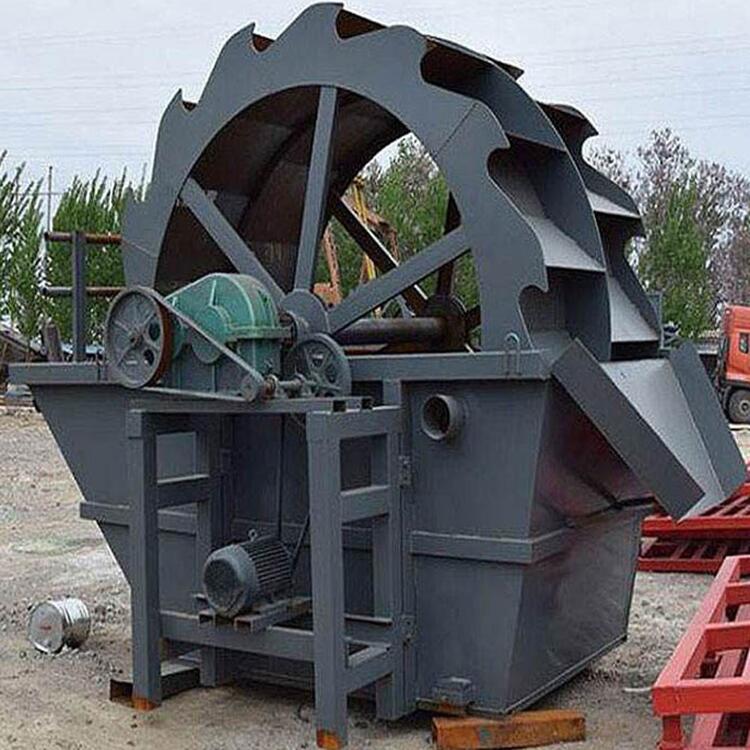

Wheel sand washing machine

　　The wheel sand washing machine has simple structure and reasonable structure. The impeller transmission bearing device is isolated from water and water-receiving materials, the novel sealing structure and the fully enclosed oil-bath transmission device greatly avoid the phenomenon of damage caused by water immersion, sand and pollutants. Good structure layout, effective sealing design, so that the machine can be maintained for a long time, durable; Low water consumption, low noise, in line with national environmental standards.

　　1. Large capacity and low production cost

　　2, multiple efficacy high degree of cleaning

　　3, simple structure low failure rate

　　4, low water consumption, low noise

　　When working, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear, and the sand and gravel enter the washing tank, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sand and gravel, and destroy the water vapor layer covering the sand and sand, so as to facilitate dehydration; At the same time, water is added to form a strong water flow, and impurities and foreign bodies with small gravity are taken away in time, and discharged from the overflow outlet washing tank to complete the cleaning effect. The clean sand is carried away by the blade, and the sand is poured into the discharge tank from the rotating impeller to complete the cleaning of the sand.
