Impact Crusher

Direct deal Quality Assurance Quick response Service worry free

Impact Crusher

Production capacity:100-500t/h

Feed particle size:<1050mm

Applicable materials:Granite, limestone, cobble, iron ore and other mineral rocks with compressive strength not exceeding 300mpa.

客服 Do you need help? WhatsApp: +8613699023026

crusher@strkmac.com Hotline:+8613666220166

Impact CrusherIntroduce

  C series impact crusher is a kind of high efficiency and energy saving crushing equipment. Crushing of ore and limestone, slag, carbon, coal, etc. with compressive strength not exceeding 350 mpa. Carbon crusher has a crushing ratio. Good grain shape. Uniform particle size and other characteristics. Therefore, it is widely used in hydropower, highways, construction waste treatment and artificial construction aggregate processing.



Impact CrusherAdvantage

1. the optimized design adopts standardized manufacturing process and selected manufacturing materials.

2. stable and reliable The bearing pedestal adopts integral cast steel structure, which makes the operation more stable.

3. crushing and shaping, good particle shape, cube shape and good particle shape.

4. simplify the crushing process. The discharge particle size can be adjusted to simplify the crushing process.



Impact CrusherWorking Principle

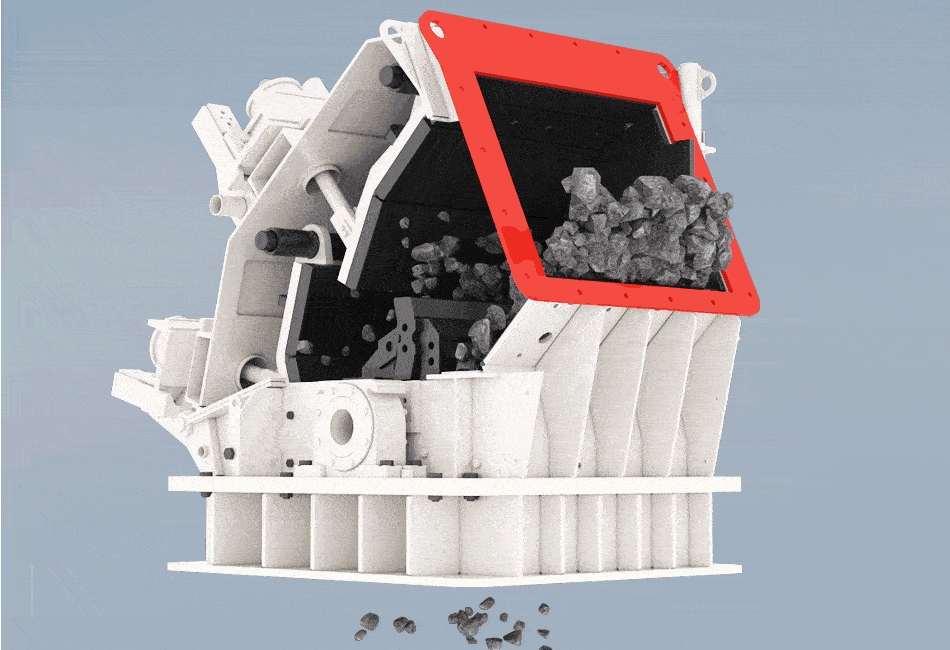

 LF large diameter impact crusher uses impact energy to crush materials. When the machine is working, the motor drives the rotor to rotate at a high speed. After the materials enter the rotor, they impact and break with the plate hammer on the rotor, and then bounce back from the reaction lining plate to the plate hammer action area for re breaking. This process is repeated. The materials enter the first, second and third reaction chambers from large to small for repeated breaking until the materials are broken to the required particle size and are discharged from the discharge port. Adjusting the clearance between the reaction frame and the rotor can change the particle size and shape of the material.


Impact CrusherTechnical Parameter

Model

    Feed size(mm)

  Maximum feed size (mm)

Capacity (t/h)

Power (t/h)

Weight (kg)

CI411

820x980

600

100-200

90-200

12000

CI412

430x980

300

60-130

90-200

12000

C421

960x1360

800

200-400

180-250

17000

CI422

450x1360

350

80-250

180-250

17000

CI431

1050x1700

800

300-500

200-400

24000

C32

600x1700

350

120-300

200-400

24000

CI441

1350x1950

1000

400-700

220-440

29600

CI442

650x1950

350

150-400

220-440

29600
