limestone grinding mill

Direct deal Quality Assurance Quick response Service worry free

limestone grinding mill

Production capacity:50-350t/h

Feed particle size:≤20mm

Applicable materials:It is suitable for all kinds of limestone, calcite, heavy calcium, quicklime, talc, barite, dolomite and other industries such as artificial granite, plastic masterbatch, PVC pipe, wire and cable, etc. ,and Mohs hardness below 7 and moisture content less than 6% Ultrafine grinding of non-metallic minerals .

客服 Do you need help? WhatsApp: +8613699023026

crusher@strkmac.com Hotline:+8613666220166

limestone grinding millIntroduce

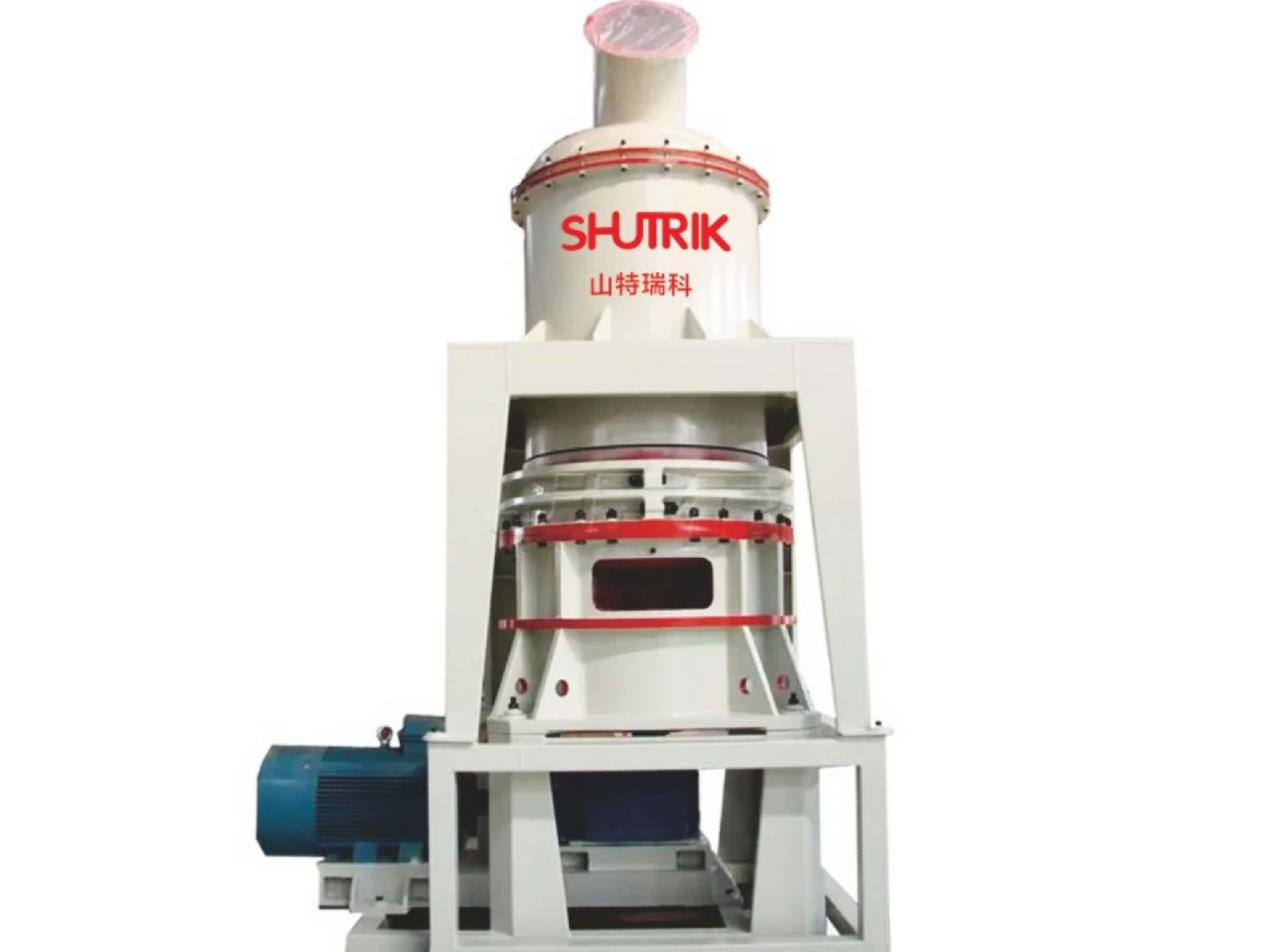

The MW series ring roller micro powder mill is a new type of high-efficiency and low-cost ultra-fine powder feeding equipment developed by combining more than three years of mill production experience and drawing on the advantages of domestic and foreign mill manufacturers. After multiple thorough investigations, research, and experiments, it is a crystallization of advanced technology and the best product in the field of ultra-fine powder feeding to replace traditional grinding machines internationally





limestone grinding millAdvantage

 1. In the case of the same fineness

it’s less investment, less cost and shorter recycling cycle than jet mill.

2.Low wear and tear of vulnerable parts

Roller and ring are made of high-quality wear-resistant materials,forging technology, and long service life.

3.Safe and reliable operation in the grinding cavit

No rolling bearing and no screws inthe grinding cavity to avoid theproblem that the screws are easy toloose and damage the machine

4.More stable transmission

Adopting a gearbox transmission device, it is more stable and efficient than traditional belt transmission

5.Accurate granularity control

A new high-efficiency cage type powder selection machine with variable frequency control, convenient particle size adjustment, precise cutting particle size, and a one-time finished product fineness of D97≤5μm

6.Environmental protection

High efficiency pulse dust collector is adopted, with high dust collection efficiency and no dust. The well is equipped with a fire extinguisher and a partition room, which effectively reduces noise and meets the latest national environmental protection standards



limestone grinding millWorking Principle

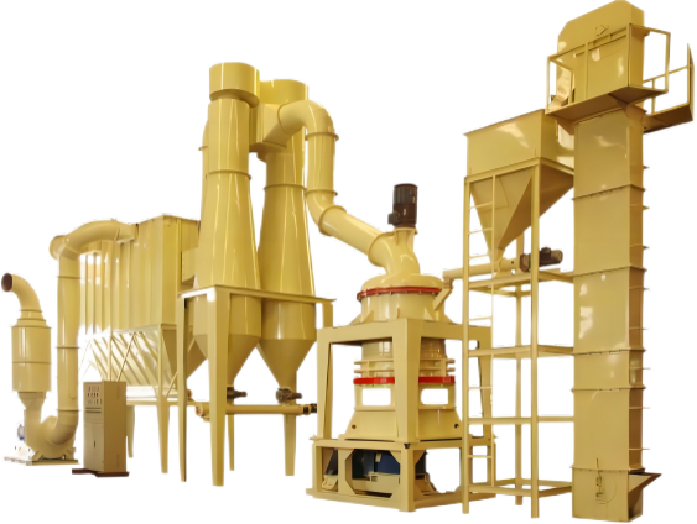

When the ring roller mill works, the motor drives the main machine to rotate, and the grinding disc starts to rotate. The ring roll rotates along the edge of the mill. ! The material is evenly distributed to the grinding disc by the feeding device, and is compacted and ground into powder under the friction and extrusion of the grinding disc and the ring roller         In the grinding process, the fan sends hot air through the pipe into the grinding, drying and grinding together with the material. The hot air can also cool the main engine and effectively control the temperature of the equipment. After grinding the material and the air flow into the separator, after powder classification, the material reaching the required particle size is blown out, the coarse particle flow back again, forming a closed cycle.

limestone grinding millTechnical Parameter

Specifications

MW880

MW1080

MW1280

MW1680

Working  Diameter ( mm)

800

1000

1250

1680

Max  Input Size(mm)

10

10

15

20

Rotary Speed  (r/min)

230-240

180-200

135- 155

120- 130

Capacity  (kg/h)

50 - 500

100-850

150- 1120

500- 2500

Q’ty of Roller (PCS)

21

28

32

36

Q’ty of Ring  Layer (PCS)

3

4

4

4

Output Size

μm

Mar-45

Mar-45

Mar-45

Mar-45

Mesh

325- 3250

325- 3250

325- 3250

325- 3250

Overall  Dimension ( mm)

13.9x4x6.2

18x4.6x8.6

14x9x10.25

26. 3x7 . 5x11 .9

Total Weight (t)

18

36

56

102

Name

Item

Specifications



MW880

MW1080

MW1280

MW1680

Motor of Main    Mill

Power  (KW)

55-75

110- 132

185-200

315

Variable frequency    motor of separator

Power  (KW)

18.5

30-37

37- 15x4

18. 5x5

Motor of Blower

Power  (KW)

45

75

45x2 - 55x2

75x2 -90x2

Hammer Crusher

Model

PC400 × 600

PC400 × 600

PC600 × 800

PC600 × 800


Power  (KW)

18.5

18.5

45

45

Belt Conveyor

Model

QB300 × 60 × 1 . 8

QB300 × 60 × 1 . 8

QB400 × 80 × 2

QB400 × 80 × 2 . 8

Feeder

Power  (KW)

1.5

1.5

1.5

1.5

Bucket Elevator

Model

TH200 × 9.79

TH300 × 11.05

TH300 × 13.55

TH300 × 16.31


Power  (KW)

3

3

5.5

7.5

Any change of technical data, no prior notice
