Mobile Impact  Crushing

Direct deal Quality Assurance Quick response Service worry free

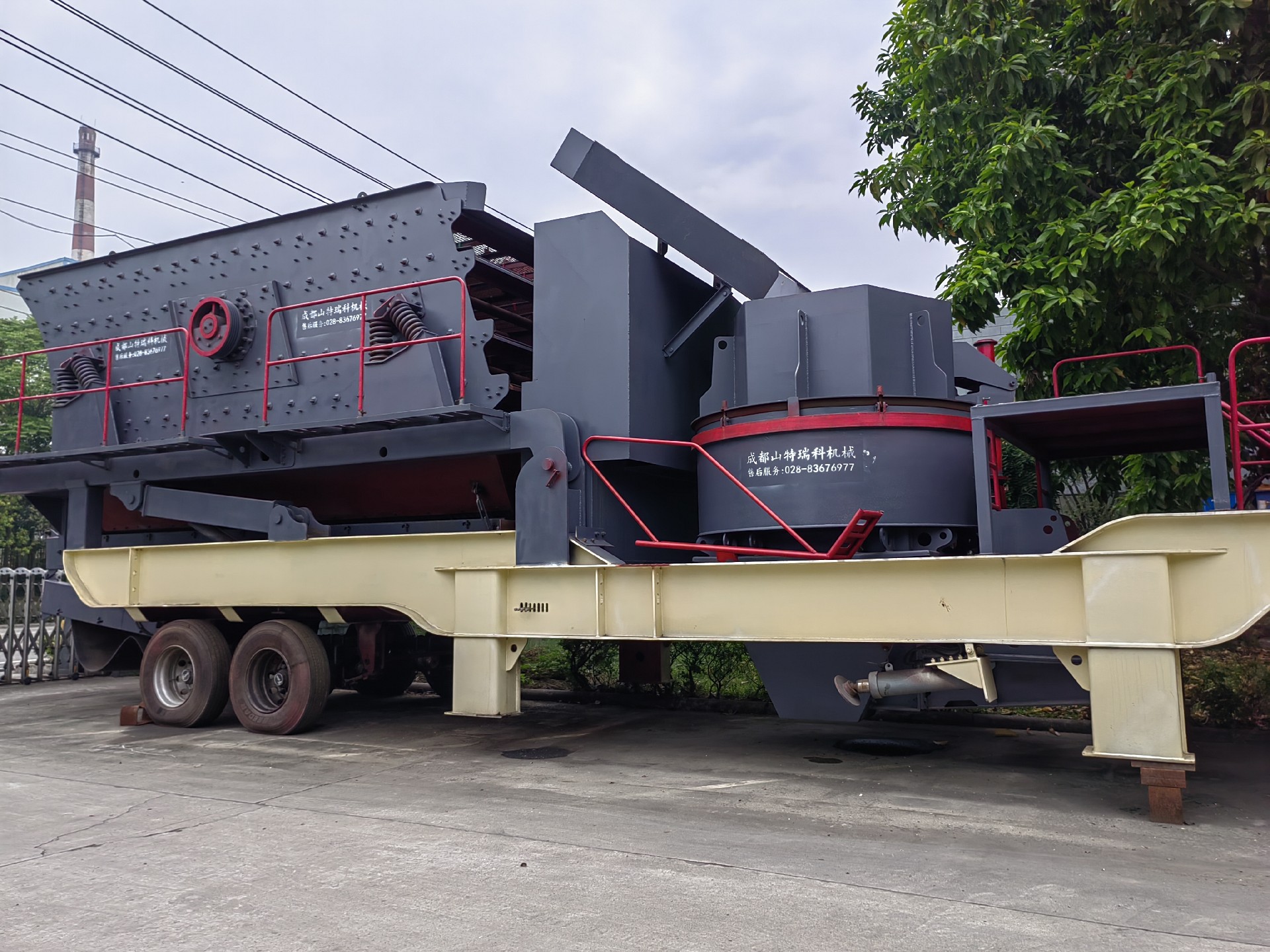

Mobile Impact Crushing

Production capacity:120-640t/h

Feed particle size:≤50mm

Applicable materials:Limestone, granite, basalt, diabase, andesite, ore tailings, construction waste, etc.

客服 Do you need help? WhatsApp: +8613699023026

crusher@strkmac.com Hotline:+8613666220166

Mobile Impact CrushingIntroduce

  Tire impact mobile crushing station (mobile crushing station) has high vehicle site and small turning radius, which is convenient for ordinary highway driving and driving in rugged and harsh road environment of crushing site area, which saves time for fast entering the construction site. It is conducive to entering the reasonable construction area, eliminating the tedious steel frame structure and foundation construction, and saving a lot of time. According to the material type and product requirements of customers, it can provide more flexible process scheme configuration to meet the requirements of users such as mobile crushing and mobile screening, so as to make the generation organization and logistics transfer more direct and effective.



Mobile Impact CrushingAdvantage

1. High performance crusher, large crushing ratio, strong crushing;

2. The shape of crushing cavity can be adjusted, and the application field and range are wide;

3. Feeder and vibrating screen integrated with jaw crusher, cone crusher and vertical impact crusher.

4. The whole unit is installed in one, which has the advantages of convenience and flexibility.

5. Under screen belt conveyor, vibrating screen, crusher integrated vehicle installation.



Mobile Impact CrushingWorking Principle

  The working principle of the impact mobile crushing station is the same as that of the impact sand making machine. The material enters the sand making machine from the feeding hopper, and is divided into two parts by the distributor. One part enters the high-speed rotating impeller in the middle of the distributor, and is accelerated rapidly in the impeller. The acceleration can reach hundreds of times of gravity acceleration, and then it is ejected from the three evenly distributed flow channels of the impeller at the speed of 60-70 M / s, First of all, it is the same as material distribution

  A part of the material falling from the impeller is impacted and broken, and then it impacts on the material lining in the vortex branch cavity together. It is rebounded by the material lining, and impacts the top of the whirling cavity obliquely. It changes its movement direction and deflects downward. The material emitted from the impeller channel forms a continuous material curtain. Such a piece of material is subjected to two or more probability impacts in the vortex crushing chamberFriction and grinding crushing. The crushed material is discharged from the lower discharge port. And circulation screening system to form a closed circuit, general circulation three times can be broken into less than 20 mesh. In the whole crushing process, the materials impact each other, not directly contact with the metal components, but with the material lining impact, friction and crushing, which reduces the angular pollution, lengthening machineMechanical wear time. The ingenious self circulation of airflow inside the vortex chamber eliminates dust pollution.





Mobile Impact CrushingTechnical Parameter

Equipment type

Screening equipment

Crushing plant

Lower belt screening machine

Maximum feed size (mm)

Shipping size (mm)

KHPT200

3YZS1860

HPT200

B800x7.5m

135

12600x3000*4500

KHPT300

3YZS2160

HPT300

B800*7.5m

150

13800*3000x4500

KHPT400

3YZS2160

HPT400

B1000x7.5m

185

12600x3000x4500

KHPT500

3YZS2570

HPT500

B1200x8.5m

205

13800x3000*4500

KSMC8000

3YZS2160

SMC8000

B1000*8.5m

40

13800x3000x4500

KSMC8500

3YZS2160

SMC8500

B1000*8.5m

40

13800*3000x4500

KSMC9000

3YZS2160

SMC9000

B1000*8.5m

40

13800x3000x4500

KSMC9500

3YZS2570

SMC9500

B1200x8.5m

40

13800x3150x4500
