In the wave of urban renewal and infrastructure construction booms, massive projects like large-scale urban village renovations and highway expansions generate vast amounts of construction waste. Traditional landfill methods can no longer meet environmental and resource recovery needs. This article will analyze five mainstream types of crushers to help you achieve a win-win situation for green construction and economic benefits.
I. Detailed Explanation of the Efficient Concrete Recycling Process
In your construction waste processing project, it's never accomplished by a single machine, but through a sequence from feeding → primary crushing → magnetic separation → secondary crushing → screening → finished aggregate.
We outline the key points of the process flow for you:
Feeding: A vibrating feeder provides uniform material input and preliminarily screens out oversized impurities.
Primary Crushing: A jaw crusher handles large concrete blocks, breaking them down into coarse pieces ≤400mm.
Magnetic Separation: A magnetic separator removes steel reinforcement bars.
Secondary Crushing: An impact crusher or cone crusher performs medium and fine crushing, shaping the aggregate to 0-40mm.
Screening: A multi-layer vibrating screen precisely grades the material, with non-compliant material returned for re-crushing.
Finished Product: Produces aggregates (0-5mm, 5-10mm, 10-20mm, 20-40mm) for use in road construction, concrete mixing, and eco-brick production, etc.
II. In-depth Analysis of Five Common Crushers
Different crushers play crucial roles in a concrete recycling production line.
Jaw Crusher
The jaw crusher is suitable for the primary crushing of concrete blocks with compressive strength not exceeding 320MPa. If you are advancing a large-scale urban village renovation project and facing a large quantity of massive waste concrete, it is recommended to prioritize its use.
This equipment provides extremely stable and reliable primary crushing, quickly reducing large concrete blocks to below 400mm, laying an efficient crushing foundation for your project, and it has low operating costs.
Cone Crusher:
The cone crusher specializes in medium and fine crushing, suitable for processing concrete material that has undergone primary crushing. If your project requires producing uniformly sized recycled coarse aggregate, it is recommended to use a cone crusher in combination.
When you need to further process primarily crushed concrete blocks into uniform aggregate below 40mm, the cone crusher is an efficient choice.
Depending on the required finished product size, you can choose from standard, intermediate, or short-head types. It may be more sensitive to material with slightly higher soil content; pre-screening can improve its efficiency.
Impact Crusher
The impact crusher excels at processing concrete blocks with side lengths not exceeding 500mm. It has a large crushing ratio and produces cubic-shaped finished products, making it an ideal choice for secondary crushing.
This equipment offers strong impact resistance and wear resistance, and can simultaneously separate some impurities. It is particularly suitable for producing recycled aggregate for commercial concrete plants or high-standard building materials.
Its hammer wear rate is relatively fast; maintenance costs need comprehensive consideration when processing extremely hard materials. It is often paired with a jaw crusher in a classic combination.
Hammer Crusher
The hammer crusher relies on hammers hinged on a rotor to impact and throw material against crushing linings at high speed, often achieving "one-step crushing and shaping". It is suitable for processing medium-soft concrete waste.
If you are undertaking a small-scale ancillary urban village renovation project with limited throughput requirements, it is recommended that you choose it.
Its advantages are its compact structure, small footprint, and simple operation, allowing your small project to start production quickly and reducing site planning and operational management costs.
VSI Crusher (Sand Making Machine):
The VSI impact crusher is the core equipment for sand-grade crushing, suitable for crushing concrete waste into recycled fine aggregate.
If your project requires producing manufactured sand to replace natural sand, it is recommended to focus on this equipment.
This equipment produces finished products with reasonable gradation and rounded particles, allowing your recycled fine aggregate to meet higher standards for construction sand, expanding the application scenarios of the finished product.
III. Mobile Concrete Crushing Stations:

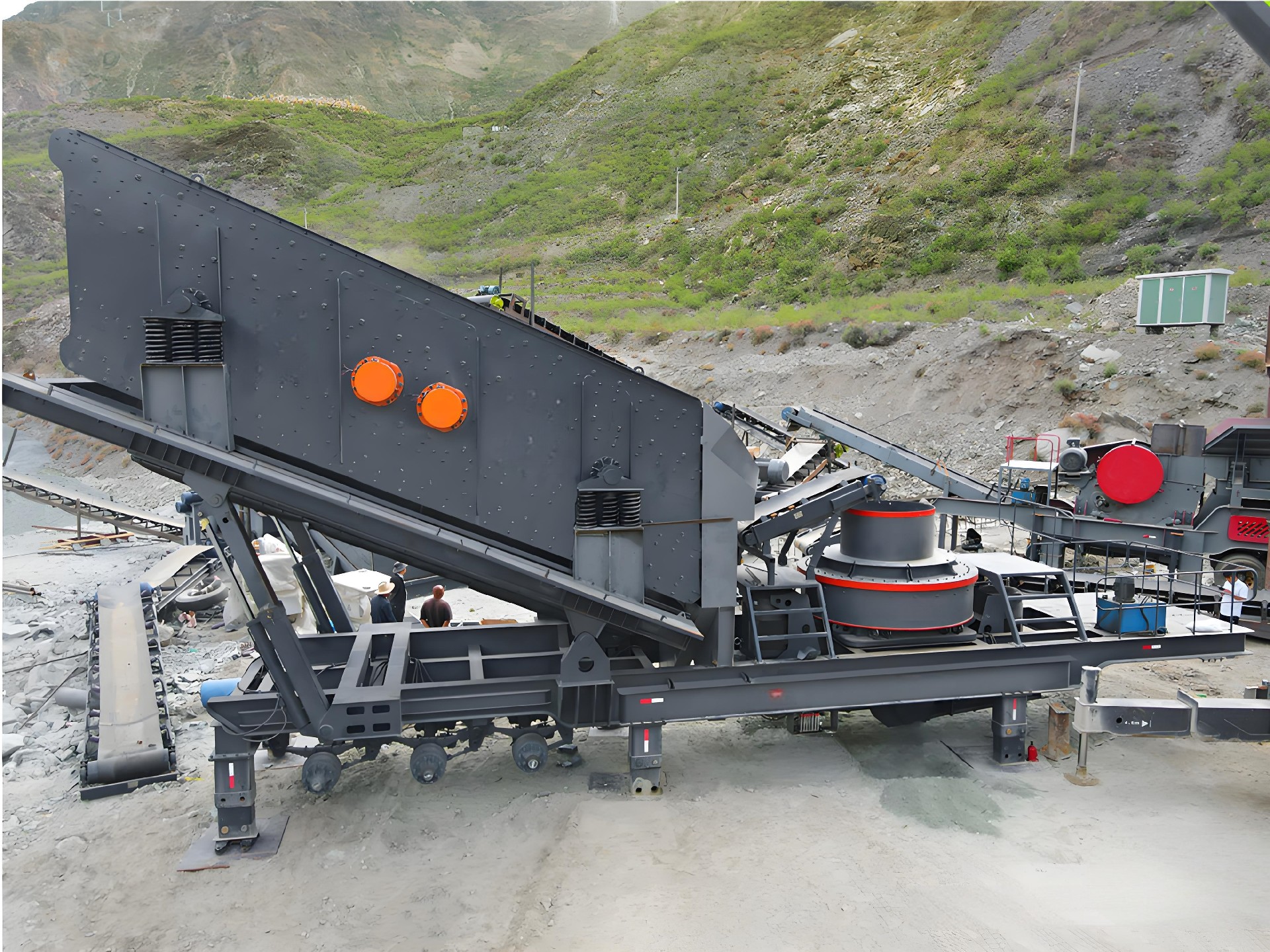

Tire-mounted Mobile Crushing Plant
Structure and Mobility: The main unit, feeder, screen, etc., are integrated onto one or more tire-mounted chassis, requiring a semi-trailer tractor for towing and movement.
Core Advantage: Relies on road travel for relocation, no disassembly required, offering fast and flexible movement. Upon reaching the site, it needs to be stabilized using hydraulic legs and connected to an external power source or use a diesel generator set for power supply.
Applicable Scenarios: If your project involves crushing along highway expansion routes or requires medium to short-distance relocation, it is recommended that you choose it.

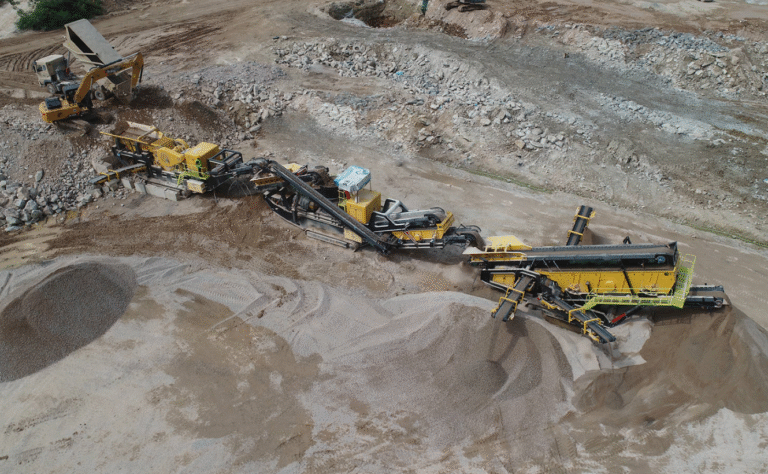

Crawler-mounted Mobile Crushing Plant
Structure and Mobility: The crawler-mounted mobile crushing station uses a fully rigid crawler chassis with low ground pressure, capable of climbing 30° steep slopes, suitable for harsh terrains like mountains and muddy conditions.
Core Advantage: It has "zero requirements" for the site, can move freely in rugged, soft demolition sites, has strong climbing ability, truly achieving "crush on the go".
Usage Scenario: If your construction site has complex terrain, limited space, or requires frequent movement following demolition progress, it is recommended to choose the crawler-mounted mobile crushing station.

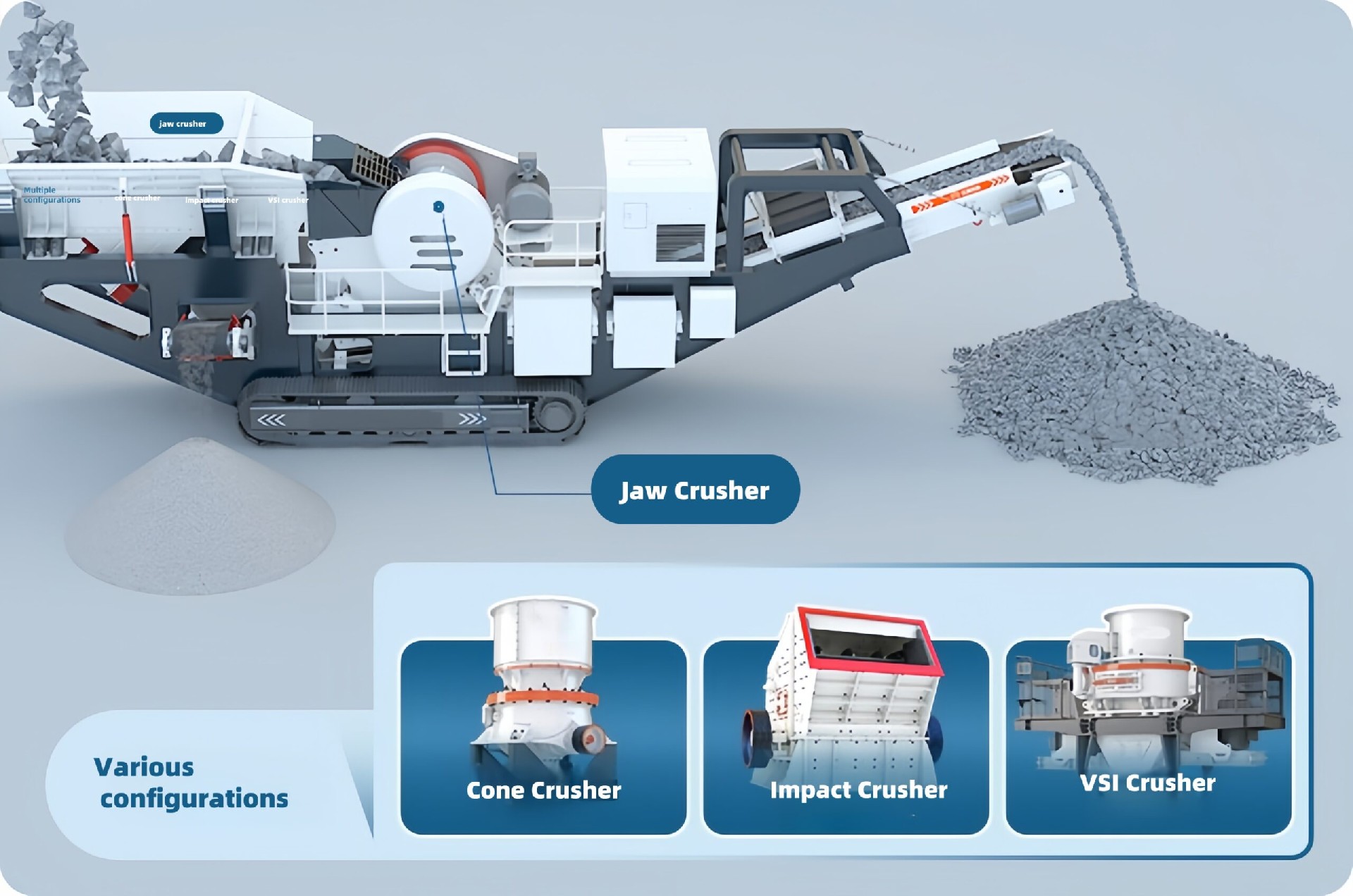

Configuration Options and Customization Strategy
The success of a mobile crushing station hinges on precise configuration. Its high degree of customization follows these core strategies:
Host Machine Combination: From jaw, impact to cone crushers, all can be mounted as the main unit.
For example, a "mobile jaw crusher + mobile impact crusher + mobile screen" combination can provide your project with a complete production line from coarse crushing to refined processing.
Function Integration: Modern high-end mobile stations can integrate pre-screening, magnetic separation, air separation (for light materials), dust reduction, and even intelligent control systems, creating a highly integrated, clean "mobile crushing factory" for you.
Selection Core: The optimal configuration depends on your material characteristics, expected capacity, finished product specifications, and budget.

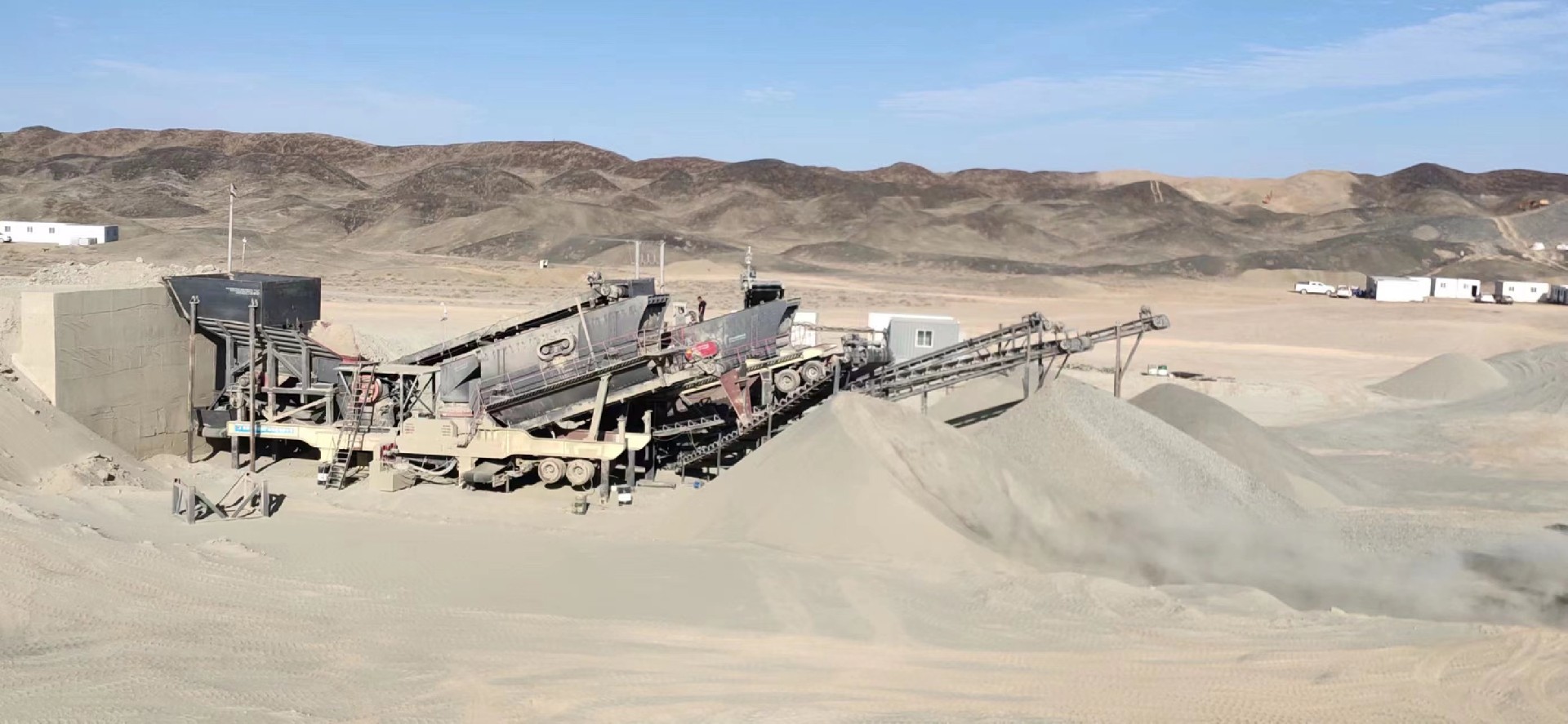

IV. Typical Case Analysis: 200-300 Tons Per Hour Mobile Solution
Project Overview: In a large-scale construction waste resource recovery project in Zimbabwe, processing materials mainly include bricks, tiles, and waste concrete. The system can efficiently process both reinforced and non-reinforced concrete.
Finished Product Requirements:
0--5mm recycled sand
5--20mm recycled aggregate
20--40mm base material
Configuration: Tire-mounted mobile crushing station, with a PEV106 jaw crusher as the primary unit, a PF1315 impact crusher, and a triple-deck vibrating screen.
Project Manager Feedback: This set of 200-300 tons per hour equipment fully meets our project needs. Since commissioning, it has operated with stable efficiency, and returns have far exceeded expectations.
Summary
Correct process and equipment selection is the cornerstone of success for construction waste resource recovery projects. If you are looking for specific solutions, please feel free to contact us at any time. We will provide you with full-process professional support from planning to equipment.
