Mobile Cone Crusher

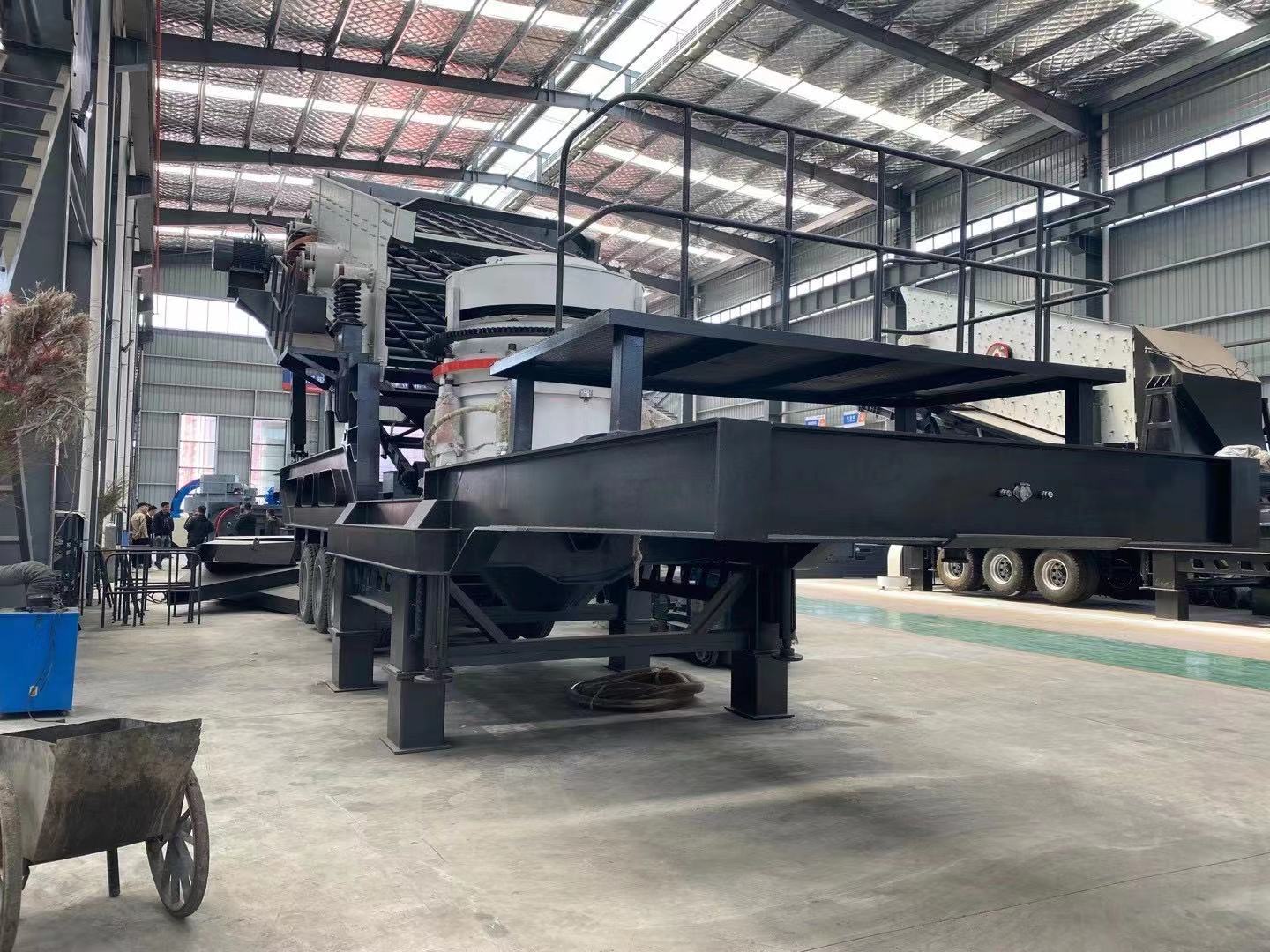

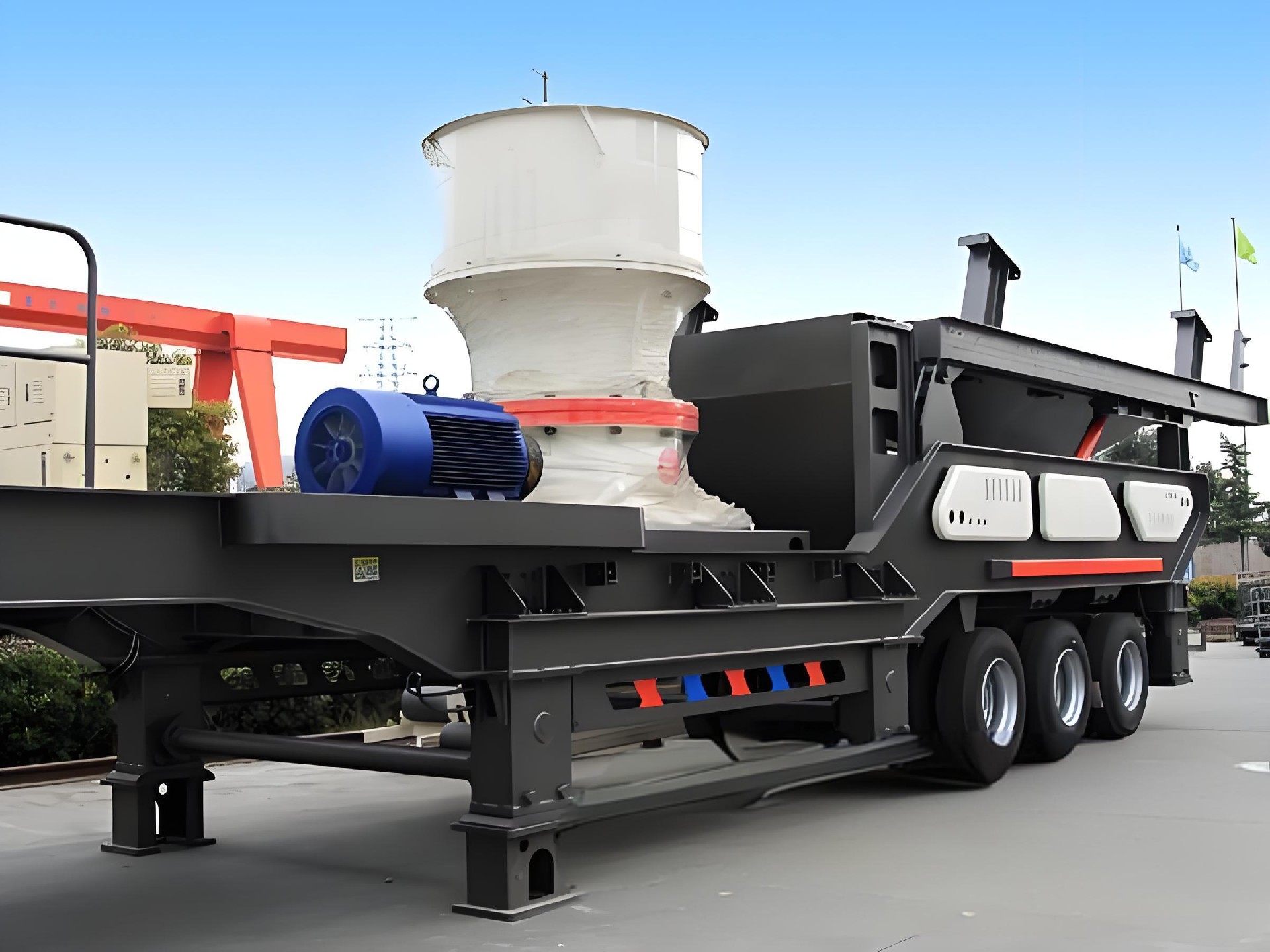

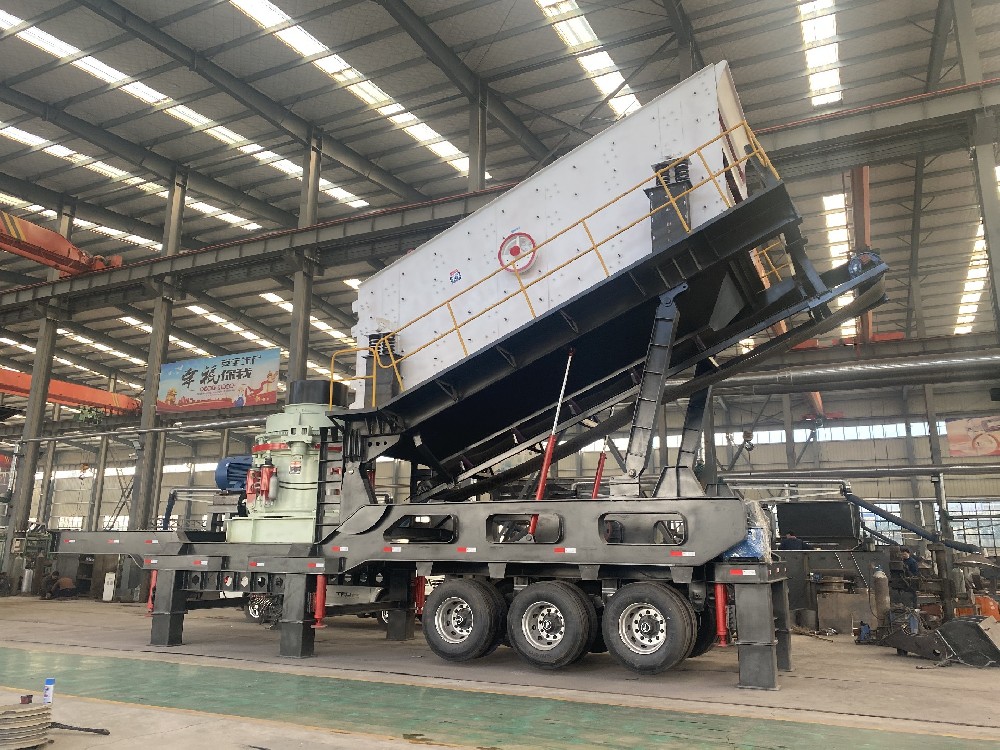

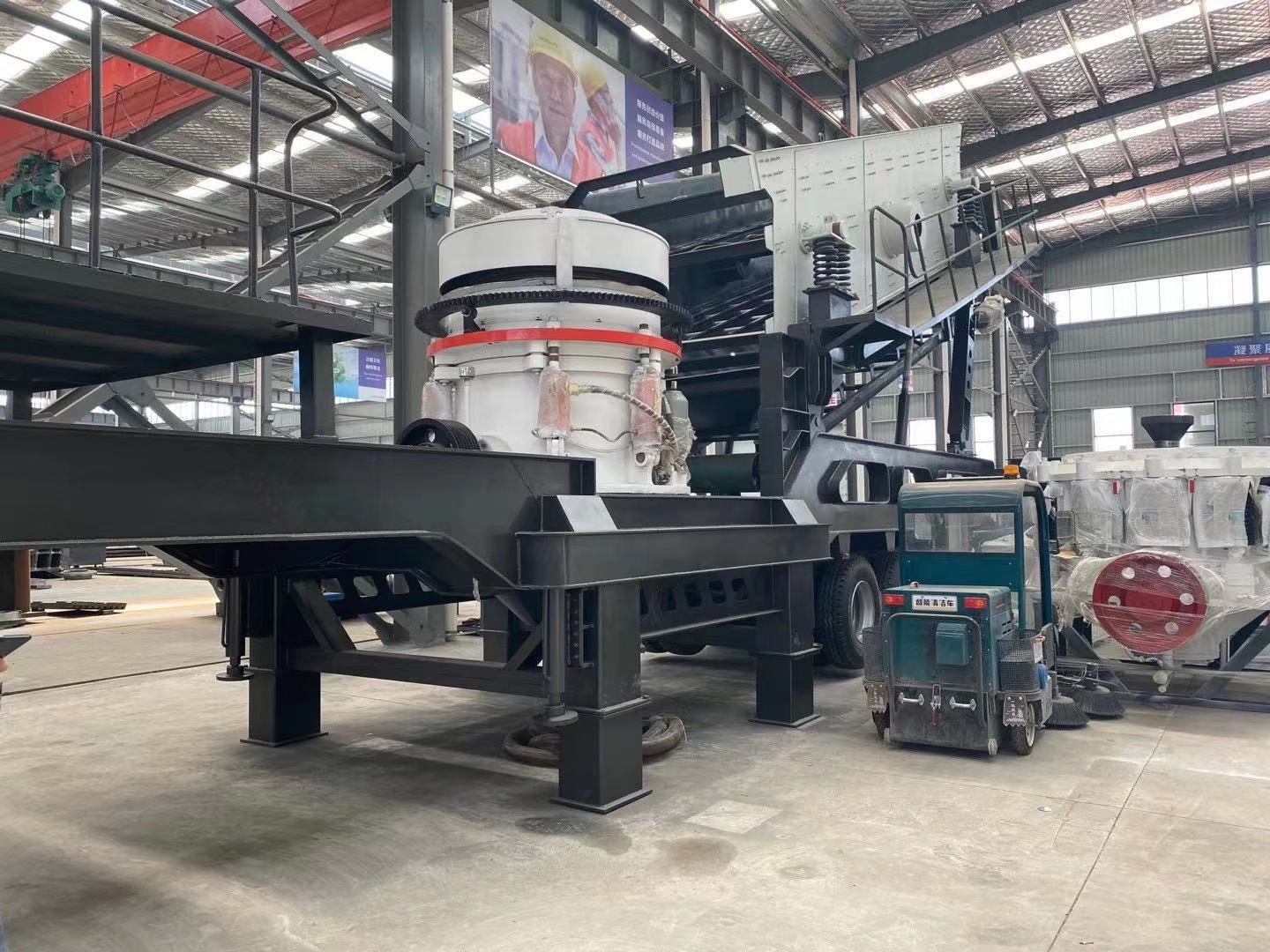

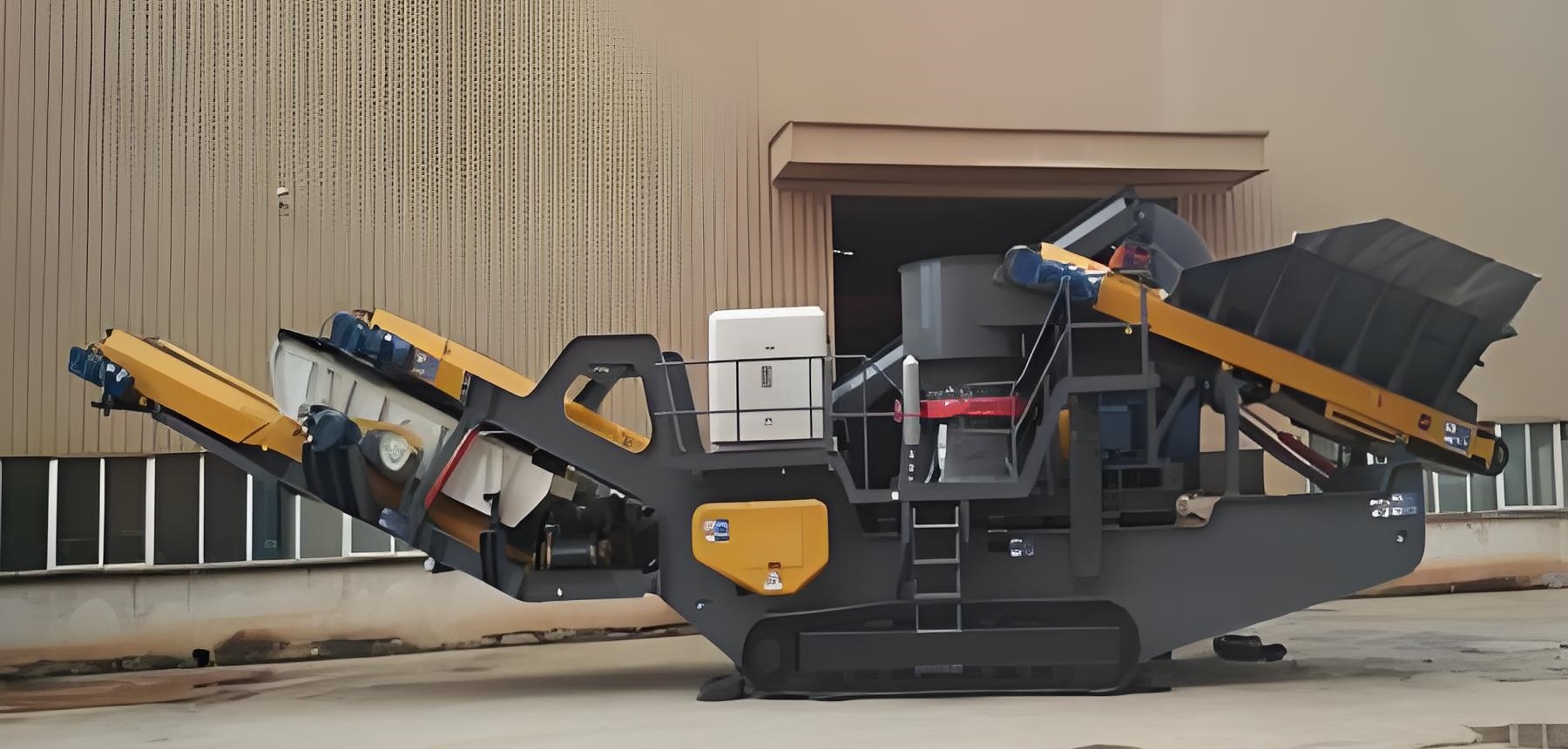

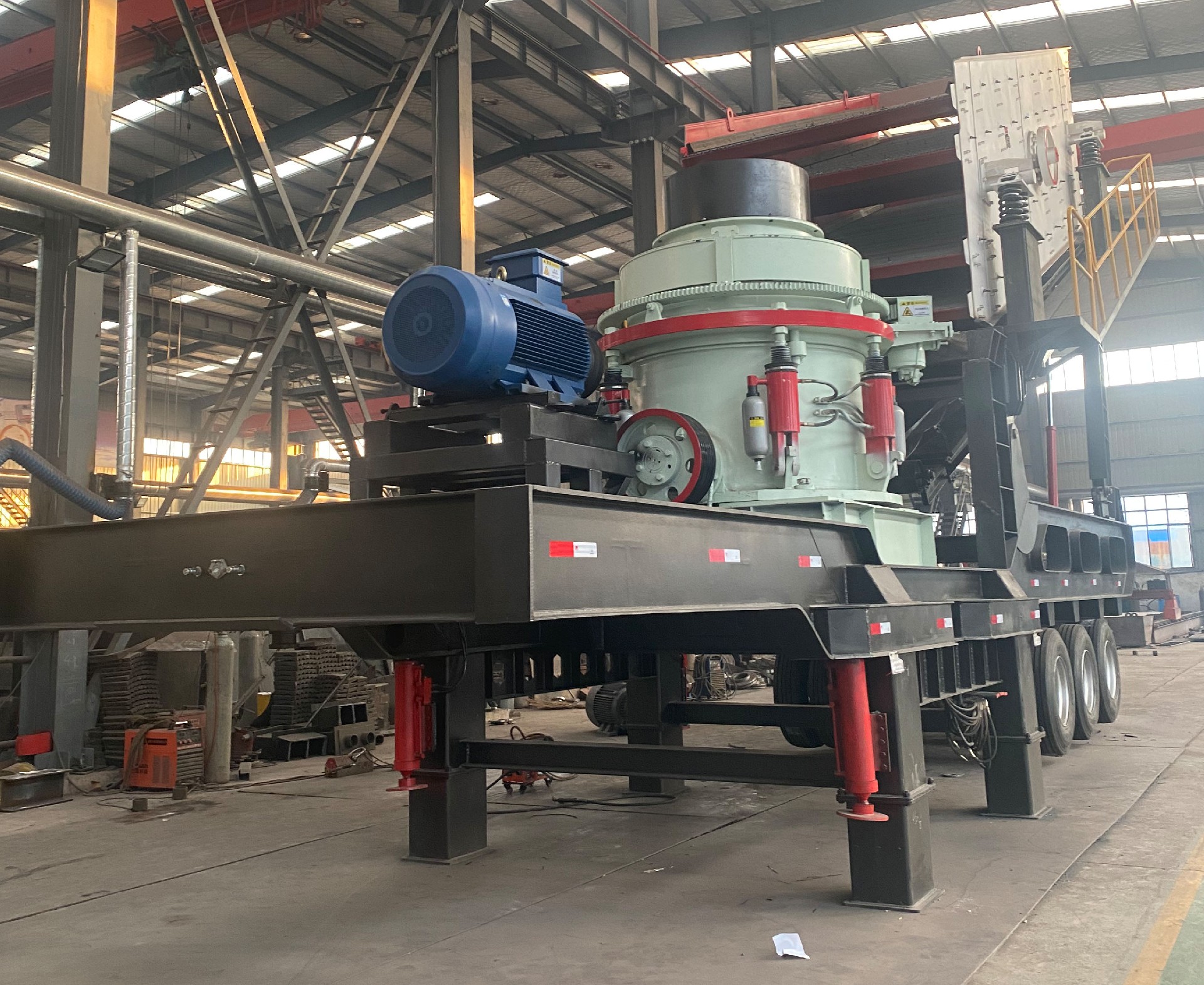

Mobile cone crusher is a mobile crushing equipment that combines a cone crusher with a mobile device. It has crawler type and tire type. It is mainly used for medium and fine crushing of various ores and rocks, especially for materials with higher hardness.

Mobile cone crushers have the following advantages:

Strong mobility:

Whether it is tire-type or crawler-type mobile cone crushers, they all have high chassis and good passing performance, and can adapt to various complex terrain conditions, such as rugged mountain roads, muddy construction sites, narrow working spaces, etc.

Quick transfer:

Mobile cone crusher equipment can be quickly transferred between different construction sites and working areas without disassembly and reinstallation, saving equipment transfer time and cost and improving production efficiency.

Integrated design:

Integrate cone crusher, feeder, vibrating screen, conveyor and other equipment on a vehicle chassis to form an integrated unit equipment. It reduces the footprint of the equipment, simplifies the installation and commissioning process of the equipment, and can be quickly put into production.

Easy operation:

Mobile cone crusher is equipped with a PLC control system, which can realize automatic operation and monitoring of the equipment. It greatly reduces the labor intensity and improves the accuracy and safety of operation.

Strong adaptability:

Mobile cone crushers can handle a variety of materials, such as ore, rock, construction waste, etc., and have good crushing effects on materials with medium or high hardness.

Different types of cone crushers (such as single-cylinder hydraulic cone crusher, multi-cylinder hydraulic cone crusher, full hydraulic cone crusher, etc.) can be selected according to different production needs to provide more flexible process configuration to meet the diverse production requirements of users.

Good environmental performance:

Mobile cone crushers are equipped with complete sealing devices and dust collection equipment, which can effectively reduce dust leakage generated during the crushing process and reduce pollution to the environment.

After the material is initially screened by the vibrating screen, it enters the cone crushe r for crushing. When the cone crusher is working, the rotation of the motor causes the cone to swing around a fixed point under the force of the eccentric sleeve through the pulley or coupling, transmission shaft, etc. The crushing wall of the crushing cone sometimes approaches and sometimes leaves the surface of the mortar wall fixed on the adjustment sleeve, so that the ore is continuously impacted, squeezed and bent in the crushing chamber to achieve crushing. The crushed material is output through the conveyor belt, and then the circular vibrating screen forms a closed-circuit system to achieve cyclic crushing of the material to ensure the particle size requirements of the finished product.
