PF  Jaw Crusher

Direct deal Quality Assurance Quick response Service worry free

PF Jaw Crusher

Production capacity:1-1000t/h

Feed particle size:≤1020mm

Applicable materials:limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, pebble, pozzolana, Iron ore, copper ore, gold ore, manganese ore, etc.

客服 Do you need help? WhatsApp: +8613699023026

crusher@strkmac.com Hotline:+8613666220166

PF Jaw CrusherIntroduce

PE jaw crusher is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with a compressive strength of less than 320Mpa. It is divided into coarse crushing and fine crushing. PE series jaw crushers are widely used in mining, metallurgy, building materials, highways, railways, water conservancy and chemical industries. Large and medium-sized jaw crushers are one of Liming's flagship products. Especially in the design and production of large jaw crushers, it has reached an absolute leading level at home and abroad.



PF Jaw CrusherAdvantage

1. PE jaw is a crusher with a deep crushing chamber and no dead zone, which improves the feeding capacity and output;

2. PE jaw is a crusher with a large crushing ratio and uniform product particle size;

3. The gasket-type discharge port adjustment device is reliable and convenient, with a large adjustment range, which increases the flexibility of the equipment;

4. The lubrication system is safe and reliable, the parts are easy to replace, and the maintenance workload is small;

5. The PE jaw is a crusher with a simple structure, reliable operation, and low operating costs.

6. Equipment energy saving: single machine energy saving 15% to 30%, system energy saving more than double;

7. The discharge port adjustment range is large, which can meet the requirements of different users;

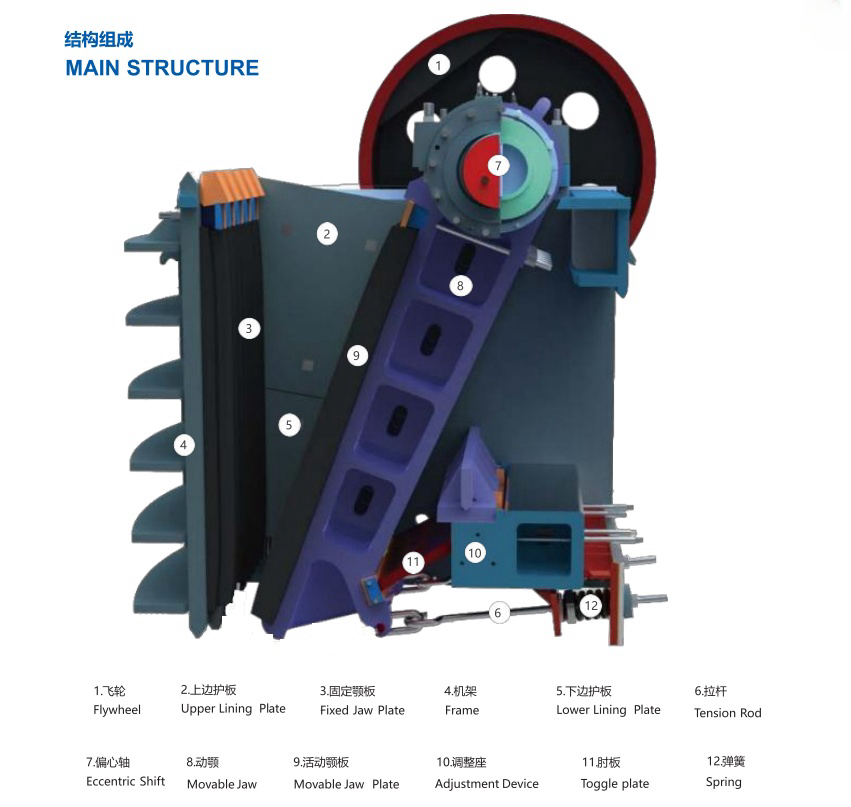

PF Jaw CrusherWorking Principle

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.




PF Jaw CrusherTechnical Parameter

Model

Feed port size mm

Maximum feed side length

Discharge port sizemm

Processing capacity t/h

Motor power kw

Overall dimensionmm

PE-250X400

250*400

200

20-50

5-20

15

1430x1310x1340

PE-400x600

400x600

350

40-100

15-60

30-37

1700x1732*1653

PE-500x750

500x750

425

50-100

40-110

45-55

1950x1878*1855

PE-600x900

600x900

480

65-160

90-180

55-75

2200x2008x1855

PE-750x1060

750x1060

630

80-140

110-320

90-110

2624x2302x3110

PE-900x1200

900x1200

750

95-180

220-450

132

3550x2823x3196

PE-1000x1200

1000*1200

850

95-190

230-500

160

3800x3166*3045

PE-1200x1500

1200*1500

1020

150-300

400-800

220

4930x3148x3703

PE-1500x1800

1500x1800

1200

220-350

400-1000

355

5630*3210x4120

PE-150x250

150x250

125

10-40

1-3

5.5

896x745*935

PE-150x750

150x750

125

18-48

5-16

15

1200x1500x1200

PE-250x750

250x750

210

25-60

15-30

22-30

1667*1545*1020

PE-250X1000

250x1000

210

25-60

15-50

30-37

1695x1921x1440

PE-250x1200

250x1200

210

25-60

20-60

37-45

2192x1900x1950
