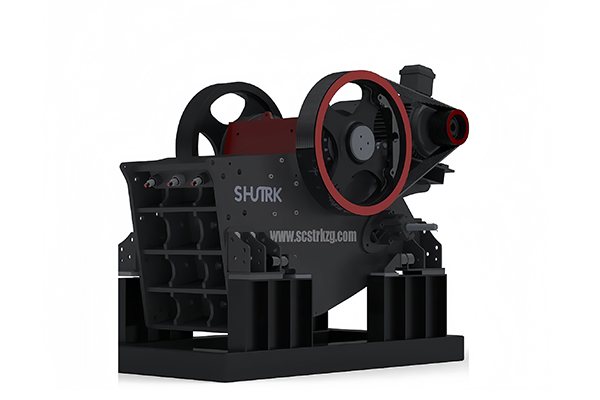

PEV Jaw Crusher

The PEV jaw crusher adopts a unique V-shaped cavity design and is widely used for rough and medium crushing of stones. Crush various ores and river pebbles with a compressive strength of w300Mpa. Such as metal ore crushing, river pebble crushing, construction waste crushing, cement plant raw material crushing, etc., provide high-quality sand and gravel aggregates for construction materials in industries such as highways, railways, bridges, hydropower dam construction, concrete mixing stations, etc.

1、Jaw Crusher is upgrade from PE jaw crusher. The crushing ratio and the input size are much higher; than, the capacity and the energy consumption are optimized.

2、Jaw Crusher adopts special discharging adjustment device, which can set the output size quickly, thus the plant can be put into production faster.

3、PEV Jaw Crusher Integrated design, smaller installation space;

4、PEV jaw crusher has a higher output and efficiency than PF jaw crusher.

5、 PEV jaw crusher adopts unique V-shaped cavity design. Whether it is a pebble Crushing Machinery, construction waste Crushing Machinery or iron Ore Crushing Machinery, there are tooth plates matching it.

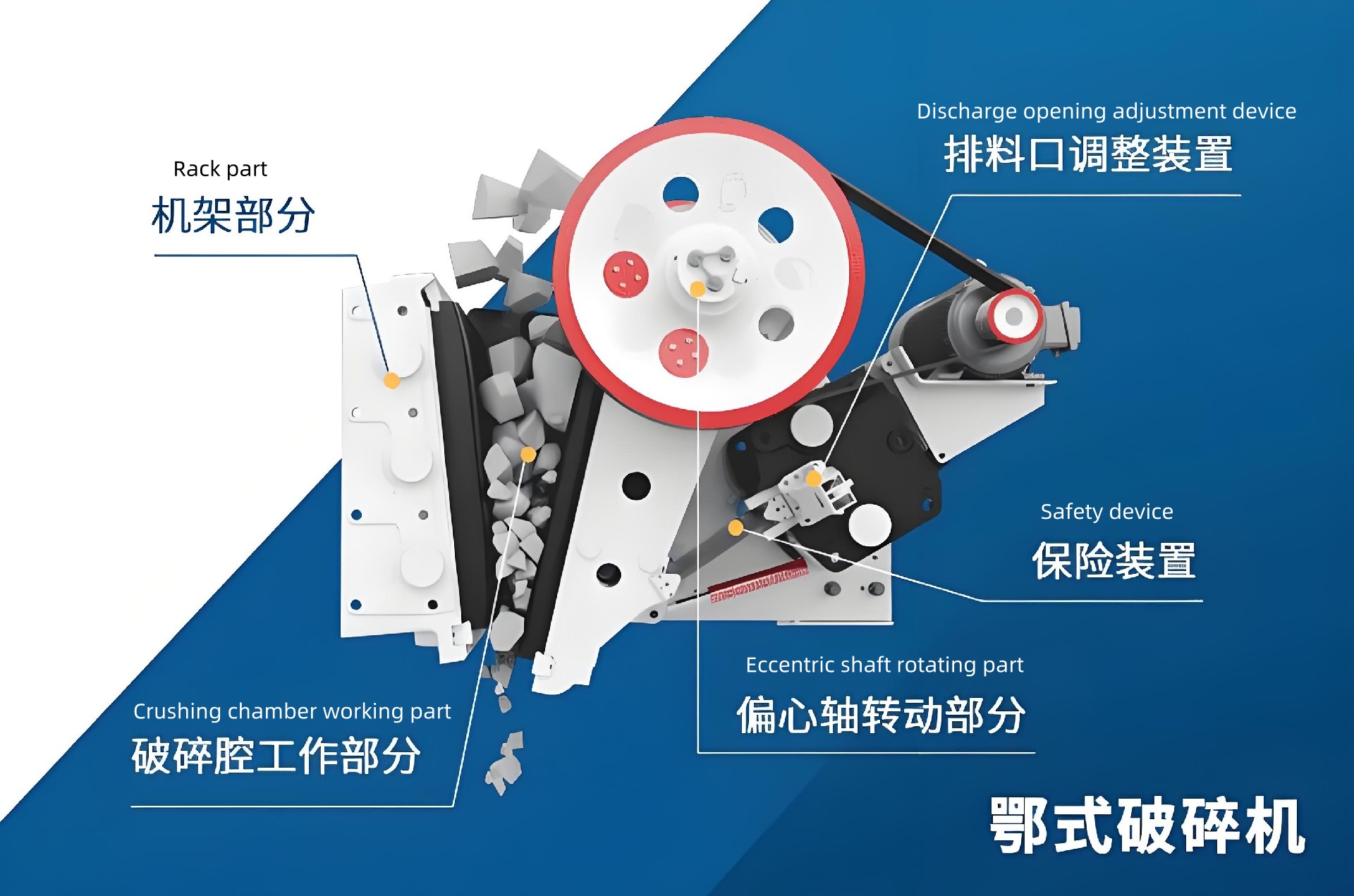

Firstly, the motor drives belt and pulley to make the movable jaw move back and forth, up and down around the eccentric shaft. When the movable jaw pushes the movable jaw plate towards the fixed jaw plate, materials get crushed. When movable jaw and plate move backwards under the action of the eccentric shaft and spring, the materials crushed before would be discharged from the port under the jaw plate. As the motor works continuously, the movable jaw can crush or discharge materials periodically, so that volume production can be achieved.
